Degasser

Degasser vacuum degassing has become very important in the steel industry for secondary refining and secondary steelmaking. Steel degassing is typically used today with the former being used typically in integrated shops and later in EAF shops. There are two types of degassers: RH Degasser and Tank Degasser.

RH Degasser Refractories

The RH degassing process initiates when both snorkels located at the base of a tall cylindrical vessel are immersed into the liquid steel. Argon is injected into the molten steel through the upleg snorkel. This causes a pressure differential that leads to the flow of steel up the upleg. It then travels across the bottom of the vessel to the down leg.

Low carbon contents can be achieved through the use of oxygen blowing as the metal is passing through the vessel. Alloys can be added to achieve the final desired chemistry. This results in a ladle full of metal with little or no dissolved gases. It reaches the right chemistry and temperature for eventual casting.

Typically, refractory lined with a magnesia-chrome brick of varying compositions depending on location if used in the vessel. Resco produces this complete range of refractory products. Typical products are Nucon 60Exceline FG-95GRFG 100.

Tank Degasser Refractories

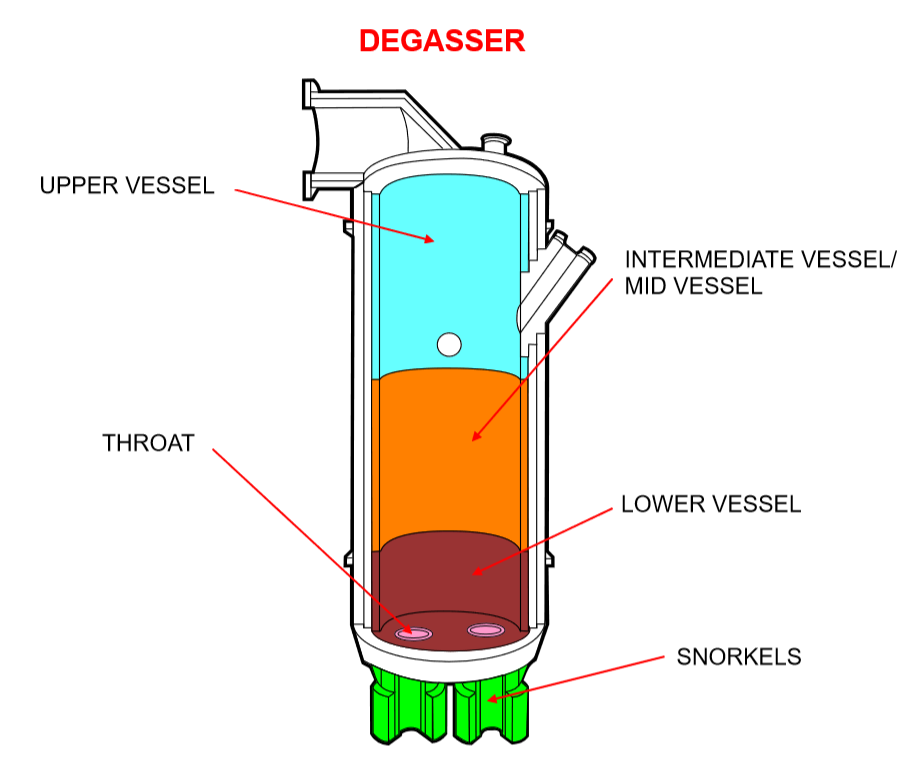

Degasser Refractory Diagram - Resco ProductsTank degassing is the process of a ladle being placed into the vacuum chamber and then sealed. After a vacuum is created in the chamber argon is injected through the bottom of the ladle. This is done through a porous plug stirring the metal and allowing for dissolved gases to be drawn away. Temperature can be adjusted by arc reheating and chemistry adjusted by alloying.

These are lined with high duty fire clay brick in the safety lining and high alumina bricks in the working lining. Working linings can also be shotcrete with a high alumina composition in the 60% alumina range. Your Resco Products representative will evaluate your processes, conditions, and company goals to determine the optimal products. Resco has industry-standard products and custom solutions depending on your application and conditions.

  Castable Brick  Mortar
Throat  Permacast FG-HS  Exceline FG95
Guiden X
Permanente Mortar
Snorkels Vibrocast ASC 8LT w/2% SS Needles  Exceline FG 95
Guidon X
GRFG
 Permanente Mortar
Safety Lining   Nucon 60
Krilex 621-2
 Permanente Mortar



  Castable  Brick  Mortar
Upper Vessel Permacast FG HS Nucon 60
Krilex 621-2
 Permanente Mortar
Mid Vessel Permacast FG HS Nucon 60
Krilex 621-2
 Permanente Mortar
Lower Vessel Floor Permacast FG HS Exceline FG 95
Guidon X
Krilex 621-2
 Permanente Mortar



RELATED PRODUCTS
Magnesia Brick

Dibond 60LArrow icon

DIBOND® 60 L is a high fired, mixed refractory silicate and direct bonded magnesia chrome brick of the 60% magnesia class. The high firing temperature produces improved resistance to non-ferrous and steel process slags and metals. DIBOND® 60 L is available plain or supplied with Steelklad external plating. Chrome Magnesite Brick, Mag Chrome, Mag-Chrome
DIBOND® 60 L is a high fired, mixed refractory silicate and direct bonded magnesia chrome brick of the 60% magnesia class. The high firing temperature produces improved resistance to non-ferrous and steel process slags and metals. DIBOND® 60 L is available plain or supplied with Steelklad external plating. Chrome Magnesite Brick, Mag Chrome, Mag-Chrome
Magnesia Brick

GR-FG 100Arrow icon

FUSED GRAIN, MAGNESITE-CHROME BRICK
FUSED GRAIN, MAGNESITE-CHROME BRICK
Dry Mortar

GRFG MortarArrow icon

GRFG MORTAR is a dry, air-setting basic mortar containing fused magnesia-chrome aggregate and can be applied by troweling or dipping consistencies. This basic mortar features excellent resistance to aggressive basic slags.
GRFG MORTAR is a dry, air-setting basic mortar containing fused magnesia-chrome aggregate and can be applied by troweling or dipping consistencies. This basic mortar features excellent resistance to aggressive basic slags.
Magnesia Brick

Guidon XArrow icon

Magnesite-Chrome Brick, Burned, Fused Grain
Magnesite-Chrome Brick, Burned, Fused Grain
Magnesia Brick

Krilex 621-2-CArrow icon

Re-Bonded Fused Grain Magnesite-Chrome Brick
Re-Bonded Fused Grain Magnesite-Chrome Brick
Basic Monolithics

PermaCast FG Ram CastArrow icon

PermaCast™FG is a low silica, volume stable, magnesia-chrome ramming mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its high strength throughout a wide temperature range.
PermaCast™FG is a low silica, volume stable, magnesia-chrome ramming mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its high strength throughout a wide temperature range.
Basic Monolithics

PermaCast FG-GMArrow icon

PermaCast™FG-GM is a low silica, volume stable, magnesia-chrome gunning mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its high strength throughout a wide temperature range. Sizing and bonding system designed for minimum rebound when applied through nozzle mix gunning equipment.
PermaCast™FG-GM is a low silica, volume stable, magnesia-chrome gunning mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its high strength throughout a wide temperature range. Sizing and bonding system designed for minimum rebound when applied through nozzle mix gunning equipment.
Basic Monolithics

PermaCast FG-GM DSArrow icon

PERMANENTE FG-GM DS is a dust suppressed, basic gunning mix containing a fused magnesia-chrome grain and is formulated for use against aggressive basic slags. This product is installed by conventional gunning only.
PERMANENTE FG-GM DS is a dust suppressed, basic gunning mix containing a fused magnesia-chrome grain and is formulated for use against aggressive basic slags. This product is installed by conventional gunning only.
Basic Monolithics

PermaCast FG-HSArrow icon

PermaCast™FG-HS is a volume stable, magnesia-chrome ramming mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its strength throughout a wide temperature range.
PermaCast™FG-HS is a volume stable, magnesia-chrome ramming mix highly resistant to basic slags. It is produced from fused magnesia-chrome grain and is recommended for a wide variety of high temperature applications which require excellent corrosion resistance. Product maintains its strength throughout a wide temperature range.
Basic Monolithics

Permagun S-IIArrow icon

A high MgO gunning mix designed for minimum rebound and maximum corrosion and erosion resistance. Specifically recommended for hot or cold maintenance of basic linings where space is restricted, such as degasser snorkels.
A high MgO gunning mix designed for minimum rebound and maximum corrosion and erosion resistance. Specifically recommended for hot or cold maintenance of basic linings where space is restricted, such as degasser snorkels.
Dry Mortar

Permanente MortarArrow icon

PERMANENTE® MORTAR is a dry, heat setting, high magnesia mortar. This magnesite mortar is designed to lay up basic brick. Ideally suited for use with magnesite or magnesia-carbon brick. This mortar is suggested for working and safety linings in both steel and non-ferrous metals applications.
PERMANENTE® MORTAR is a dry, heat setting, high magnesia mortar. This magnesite mortar is designed to lay up basic brick. Ideally suited for use with magnesite or magnesia-carbon brick. This mortar is suggested for working and safety linings in both steel and non-ferrous metals applications.
Magnesia Brick

RFGArrow icon

FUSED GRAIN-CONTAINING, MAGNESITE-CHROME BRICK, Chrome Magnesite Brick, Mag Chrome, Mag-Chrome
FUSED GRAIN-CONTAINING, MAGNESITE-CHROME BRICK, Chrome Magnesite Brick, Mag Chrome, Mag-Chrome
Magnesia Brick

RFG-93Arrow icon

Composed of fused magnesia-chrome grain, chrome ore, deadburn magnesia. Has low porosity, excellent high temperature strengths and superb corrosion resistance. Recommended for the most severe wear areas of AOD's, degassers, electric furnace slaglines and a variety of other applications requiring maximum corrosion resistance.
Composed of fused magnesia-chrome grain, chrome ore, deadburn magnesia. Has low porosity, excellent high temperature strengths and superb corrosion resistance. Recommended for the most severe wear areas of AOD's, degassers, electric furnace slaglines and a variety of other applications requiring maximum corrosion resistance.
Pre-Cast Shapes

Vibrocast ASC-8LT(C-C)Arrow icon

VIBROCAST ASC-8LT (C-C) is a high purity, low-cement, alumina-spinel castable designed to provide maximum resistance to molten steel and steelmaking slags. VIBROCAST ASC-8LT (C-C) is designed for production of cast shapes or monolithic placement in steel ladles and related steelmaking environments. This product should be installed by vibration casting only.
VIBROCAST ASC-8LT (C-C) is a high purity, low-cement, alumina-spinel castable designed to provide maximum resistance to molten steel and steelmaking slags. VIBROCAST ASC-8LT (C-C) is designed for production of cast shapes or monolithic placement in steel ladles and related steelmaking environments. This product should be installed by vibration casting only.
